ENGINEERED FOR EXTREMES
TRUSTED BY WORLD-CLASS ATHLETES

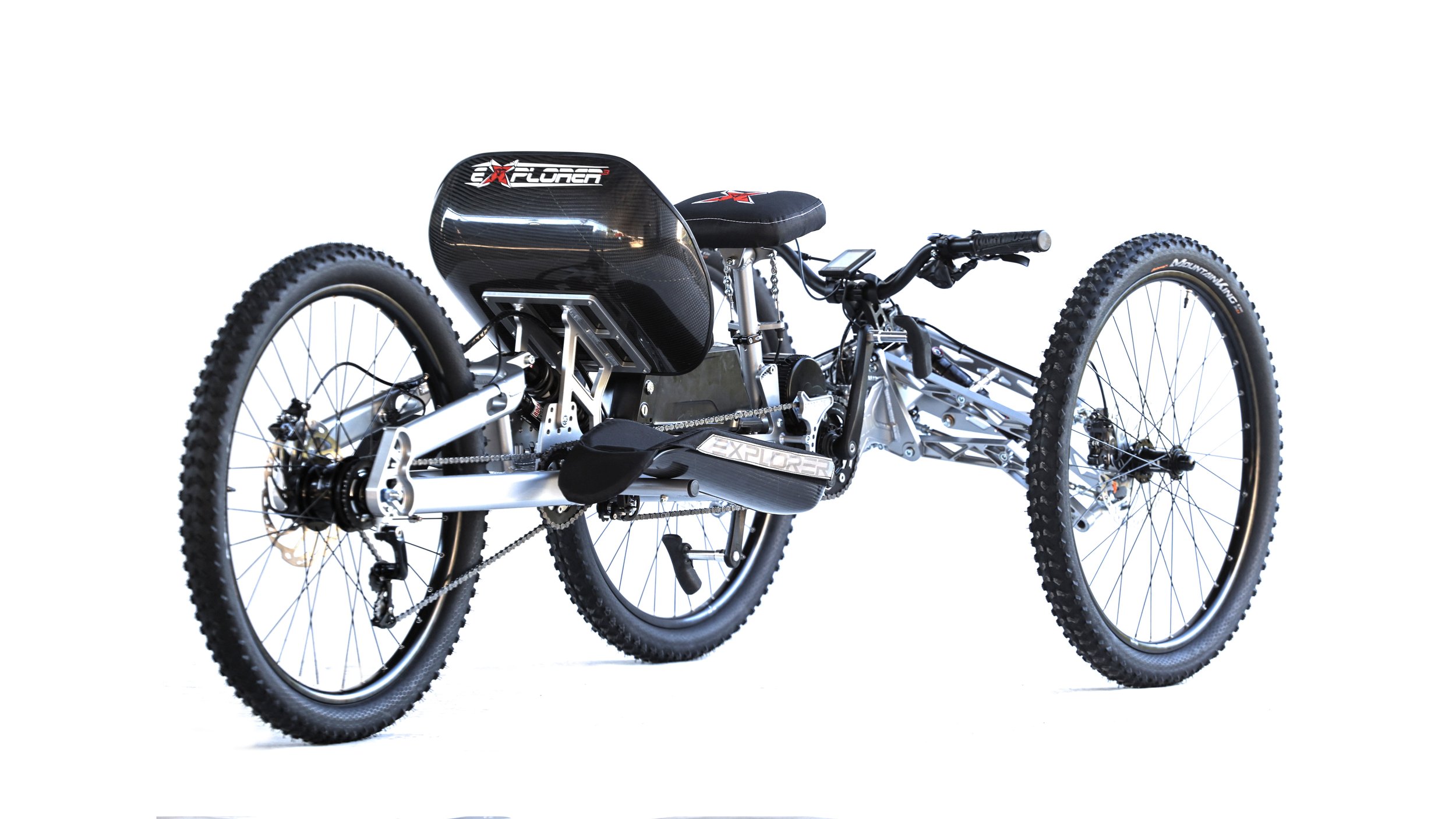

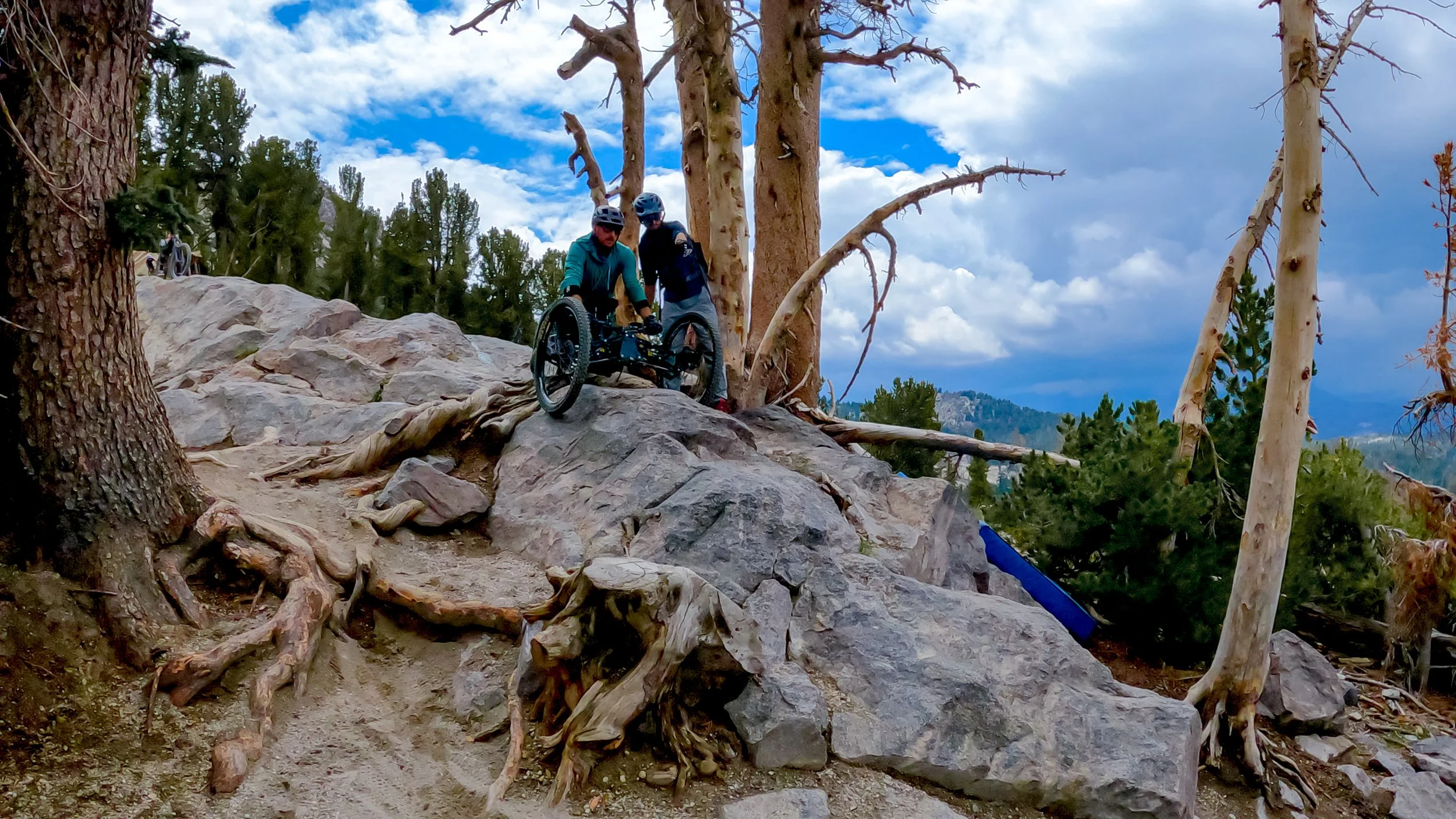

The Explorer was built to take on the toughest off-road conditions—making mountains, trails, and even beaches accessible for riders with disabilities. From rugged backcountry to sandy shorelines, nothing is off-limits.
This legendary handcycle has carried adaptive athletes to some of the world’s highest and most challenging peaks, including the Alps, the Tatra Mountains, and even Mount Kilimanjaro.
The Eplorer’s innovative chest steering system lets you steer while pedaling—keeping your hands on the cranks and your focus on the trail.
Now standard with the Rohloff Speed Hub and a newly redesigned frame, the Explorer is ready to take you farther than ever before.
Starting at $13,799.00 USD
Prices based on exchange rate and may vary
WHAT’S NEW?
Reinforced CNC Machined Frame
Redesigned Rear Swing Arm & Seat Bracket
Rock Shox Vivid Rear Coil Shock
Stronger Carbon for the Seat and Leg Cradles
Updated Upholstery
Three Wheel Sizes to Choose: 27.5", 27.5"+, or 26” Fat
Bottle Opener Machined into the Frame!!!
STANDARD FEATURES
Crank: Schlumpf Mountain-Drive 27T sprocket
Drive Hub: Rohloff Speed Hub
Handlebar: Amoeba Borla
Stem: Customized Amoeba Borla
Brakes: Magura MT5 w/203mm Rotors (front) & 180mm Rotor (rear)
Front Hubs: Novatec NT-DH41 SB / 20mm axles
Front Shocks: Rock Shox Monarch RL (200x51)
Rear Shock: Rock Shox Vivid Coil (222x70)
Rims: 27.5” Dartmoor Shield
Seat Belt
Skid Plate (NEW!)
AVAILABLE OPTIONS
Power Assist: 500W or 750W Bafang Mid-Drive
Suspension Upgrade: ÖHLINS Front TTX AIR (210x55), Rear TTX22M Coil (250x70)
Plus Size Wheels: 27.5” plus size w/3.0” Tires
Fat Wheels: 26” Fat Wheels w/4.0” Tires
High Rise Handlebar
Use what the pros use. Check out the JPM PRO Shop
SPECS
Frame Material: Aluminum alloy
Front A-Arms and Rear Swing Arm Material: CNC machined of aircraft grade aluminum
Dimensions with Wheels: L=85” W=38” H=28”
Center Tire Tread Stance: 34”
Weight: 45lbs (without electric assist), 57lbs (with electric assist)
For the full color chart, refer to www.ralcolor.com. Colors may appear different on your screen.
ADVENTURE

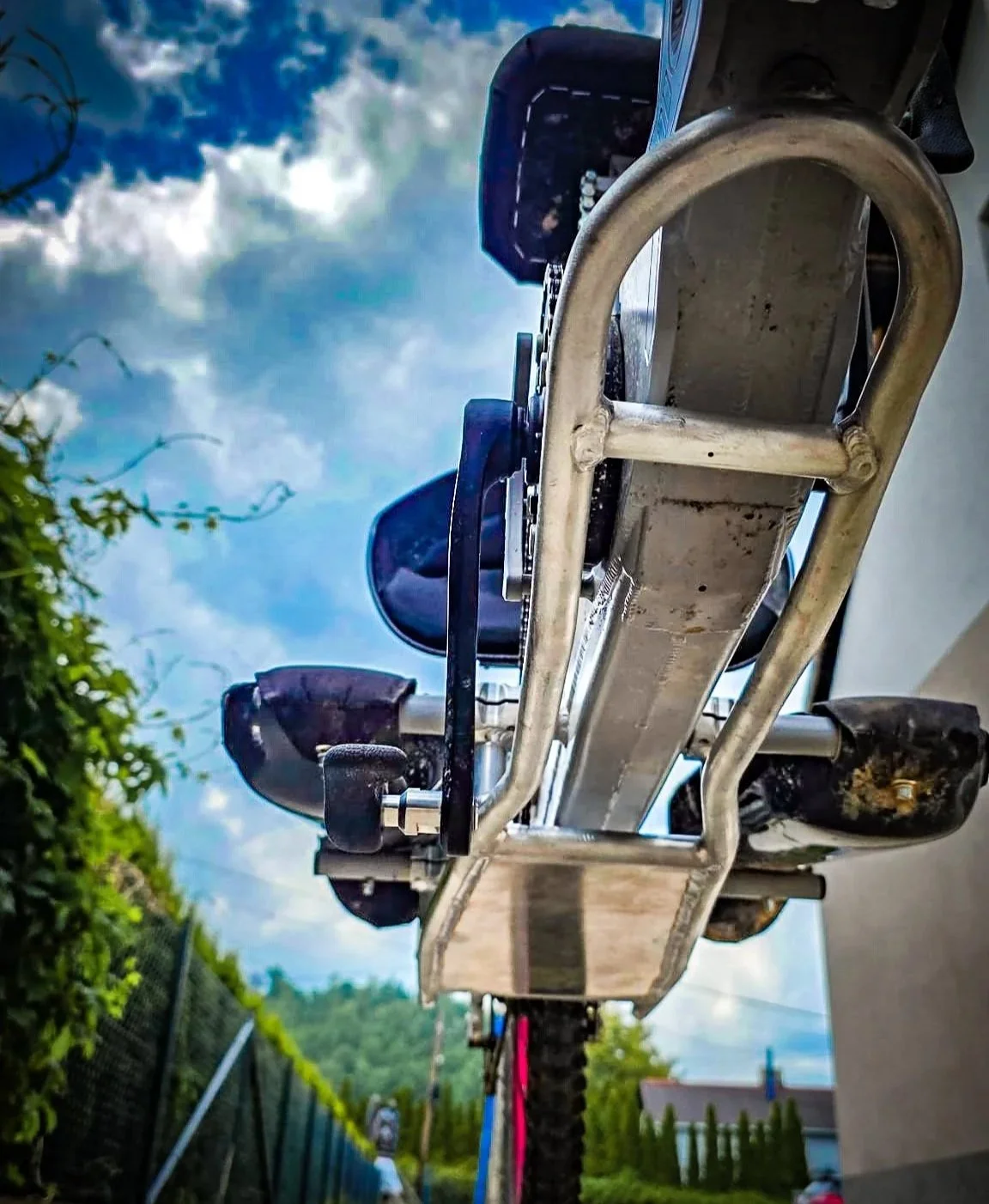

NEW SKID PLATE
RIDE BIG ROCK LINES WITH CONFIDENCE
